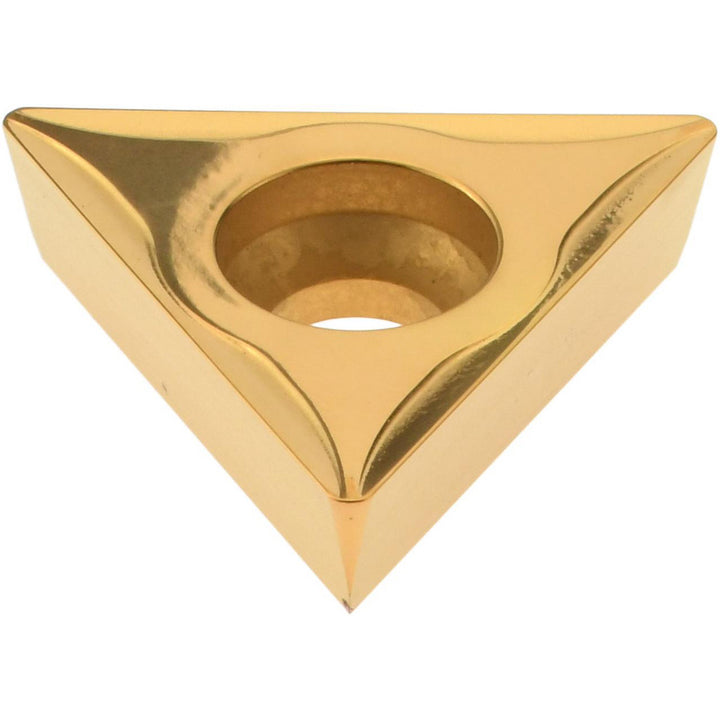

TPGH-220408-UEN-DPP30GT Carbide Insert, Grade DPP30GT, TiN - Dorian Tool 73310171736
MFR# 73310171736ISO/ANSI# TPGH-220408-UEN-DPP30GTCat# TPGH-432-UEN-DPP30GTSeries TPGH-UEN
$20.60List $25.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDPP30GT
MaterialCarbide
CoatingTiN
Description
The Dorian Tool 73310171736 is a TPGH-220408-UEN-DPP30GT carbide indexable insert, grade DPP30GT, TiN coated.
Specifications
Chip breakerUEN
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Hole diameter0.3200
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTPGH
Insert thickness in3/16
Iso codeTPGH-220408-UEN-DPP30GT
Manufacturers catalog numberTPGH-432-UEN-DPP30GT
Manufacturer gradeDPP30GT
Material gradeC6; C7
Maximum depth of cut0.2400
Multi use toolNo
RakePositive
Rake angle7
Relief angle11
StandardsANSI; ISO
Tolerance codeG
