TPHT-16T308-UEN-DPP30GT Carbide Insert, Grade DPP30GT, TiN - Dorian Tool 73310171756
MFR# 73310171756ISO/ANSI# TPHT16T308Cat# TPHT-32.52-UEN-DPP30GTSeries TPHT-UEN
$13.32List $17.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeDPP30GT
MaterialCarbide
CoatingTiN
Description

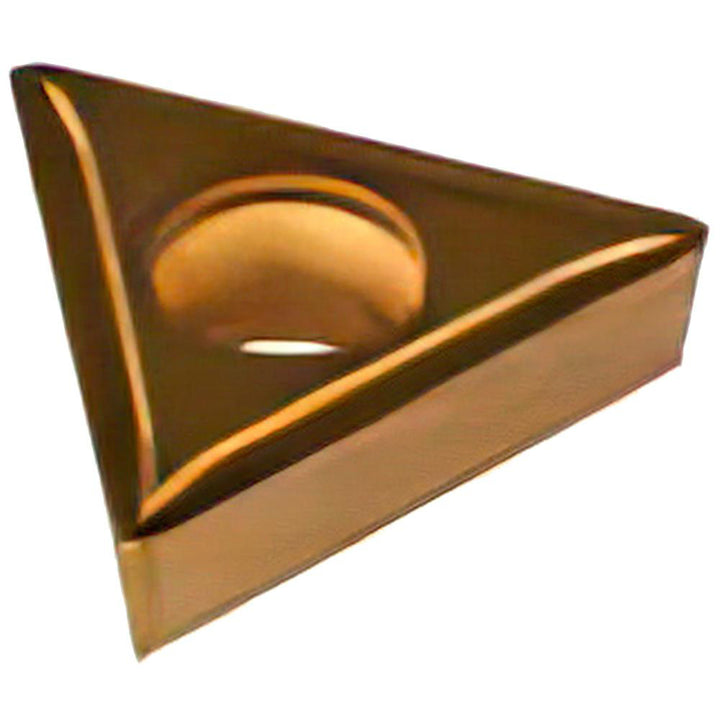

The Dorian Tool 73310171756 is a TPHT-16T308-UEN-DPP30GT carbide indexable insert, grade DPP30GT, TiN coated.
Specifications
Ansi insert codeTPHT32.52
Ansi size code32.52
Chip breakerUEN
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1780
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTPHT
Insert thickness in5/32
Iso codeTPHT-16T308-UEN-DPP30GT
Iso insert codeTPHT16T308
Iso size code16T308
Manufacturers catalog numberTPHT-32.52-UEN-DPP30GT
Manufacturer gradeDPP30GT
Material gradeC6; C7
Maximum depth of cut0.2400
Multi use toolNo
RakePositive
Rake angle7
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeH
