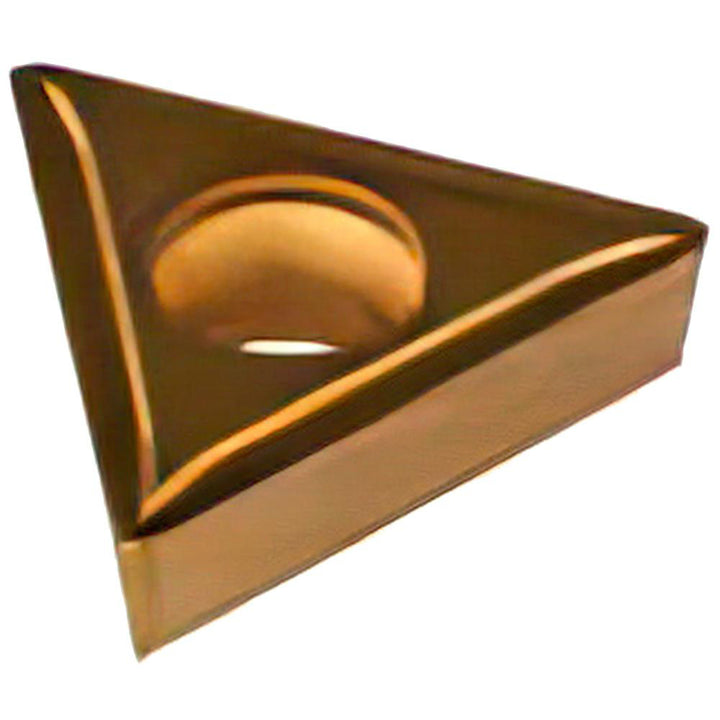

TCMT-16T308-PEM-DPC25UT Carbide Insert, Grade DPC25UT, Al2O3 - Dorian Tool 73310171918
MFR# 73310171918ISO/ANSI# TCMT16T308Cat# TCMT-32.52-PEM-DPC25UTSeries TCMT-PEM
$13.55List $17.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeDPC25UT
MaterialCarbide
CoatingAl2O3
Description
The Dorian Tool 73310171918 is a TCMT-16T308-PEM-DPC25UT carbide indexable insert, grade DPC25UT, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeTCMT32.52
Ansi size code32.52
Chip breakerPEM
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.1780
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT-16T308-PEM-DPC25UT
Iso insert codeTCMT16T308
Iso size code16T308
Manufacturers catalog numberTCMT-32.52-PEM-DPC25UT
Manufacturer gradeDPC25UT
Material gradeC5; C6
Maximum depth of cut0.2360
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Rake angle7
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
