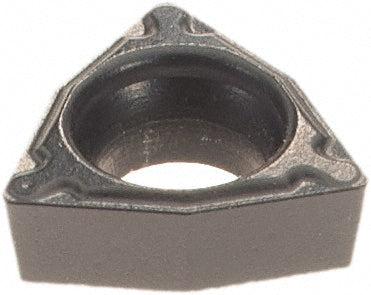

WCMT-020101-PEF-DPC25UT Carbide Insert, Grade DPC25UT, Al2O3 - Dorian Tool 73310180251
MFR# 73310180251ISO/ANSI# WCMT-020101-PEF-DPC25UTCat# WCMT-1.210.2-PEF-DPC25UTSeries WCMT-PEF
$10.88List $13.71
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeDPC25UT
MaterialCarbide
CoatingAl2O3
Description
The Dorian Tool 73310180251 is a WCMT-020101-PEF-DPC25UT carbide indexable insert, grade DPC25UT, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPEF
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0040
Cutting edge styleHoned
Hole diameter0.0840
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialCarbide
Insert shapeTrigon
Insert size code1.210.2
Insert styleWCMT
Insert thickness in1/16
Iso codeWCMT-020101-PEF-DPC25UT
Manufacturers catalog numberWCMT-1.210.2-PEF-DPC25UT
Manufacturer gradeDPC25UT
Material gradeC5; C6
Maximum depth of cut0.1180
Multi use toolNo
Primary workpiece materialSteel
RakePositive
Rake angle7
Relief angle7
StandardsANSI; ISO
Tolerance codeM
