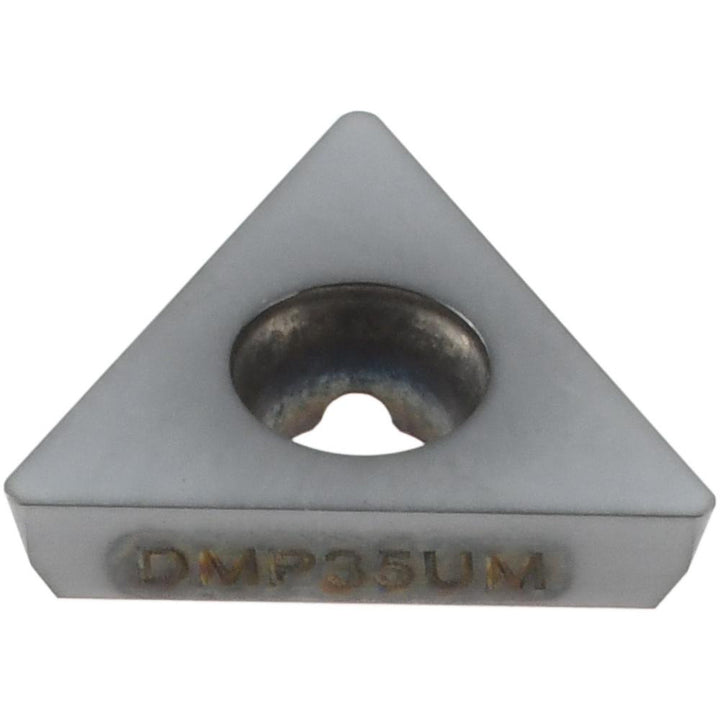

TDEX-110204-XDEN-DMP35UM Solid Carbide Insert, Grade DMP35UM - Dorian Tool 73310195423
MFR# 73310195423ISO/ANSI# TDEX-110204-XDEN-DMP35UMCat# TDEX-110204-XDEN-DMP35UMSeries TDEX
$17.33List $22.23
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDMP35UM
MaterialSolid Carbide
Description
The Dorian Tool 73310195423 is a TDEX-110204-XDEN-DMP35UM solid carbide indexable insert, grade DMP35UM. Suited for superalloys & titanium, stainless steel.
Specifications
Ansi codeTDEX-110204-XDEN-DMP35UM
Chip breakerDMP
Coating processPVD
Corner radius0.0150
Hole diameter0.1118
Included angle degree60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size11
Insert size code110204
Insert styleTDEX
Iso codeTDEX-110204-XDEN-DMP35UM
Length0.4331
Manufacturers catalog numberTDEX-110204-XDEN-DMP35UM
Manufacturer gradeDMP35UM
Material applicationHigh-Temperature Alloy; Stainless Steel
Material gradeS35; M35
Primary workpiece materialSuperalloys & Titanium; Stainless Steel
RakePositive
Relief angle15.00
Single or double sided insertSingle
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.4331
