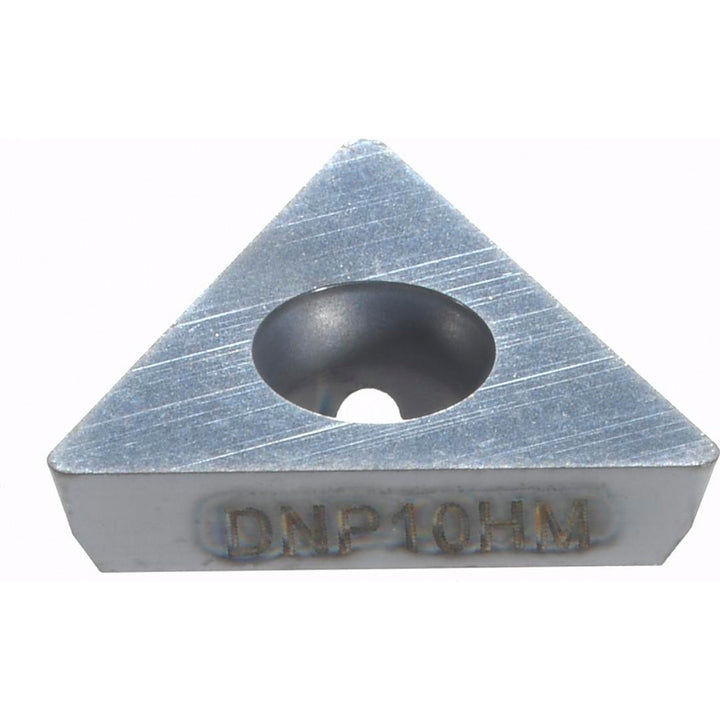

TDEX-110204-XDEN-DNP10HM Solid Carbide Insert, Grade DNP10HM, Coated - Dorian Tool 73310195427
MFR# 73310195427ISO/ANSI# TDEX-110204-XDEN-DNP10HMCat# TDEX-110204-XDEN-DNP10HMSeries TDEX
$18.07List $23.18
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDNP10HM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195427 is a TDEX-110204-XDEN-DNP10HM solid carbide indexable insert, grade DNP10HM, Coated coated. Suited for cast iron.
Specifications
Ansi codeTDEX-110204-XDEN-DNP10HM
Chip breakerDNP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Included angle degree60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size11
Insert size code110204
Insert styleTDEX
Iso codeTDEX-110204-XDEN-DNP10HM
Length0.4331
Manufacturers catalog numberTDEX-110204-XDEN-DNP10HM
Manufacturer gradeDNP10HM
Material applicationCast Iron
Material gradeK10
Primary workpiece materialCast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.4331
