Dorian Tool

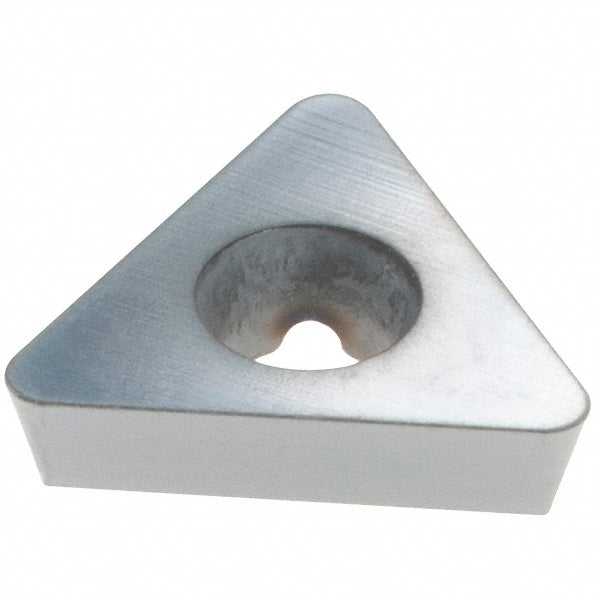

TDEX-110208-XDEN-DPP30UM Solid Carbide Insert, Grade DPP30UM, Coated - Dorian Tool 73310195431
MFR# 73310195431ISO/ANSI# TDEX-110208-XDEN-DPP30UMCat# TDEX-110208-XDEN-DPP30UMSeries TDEX
$15.92List $20.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDPP30UM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195431 is a TDEX-110208-XDEN-DPP30UM solid carbide indexable insert, grade DPP30UM, Coated coated. Suited for steel.
Specifications
Ansi codeTDEX-110208-XDEN-DPP30UM
Chip breakerDPP
Coating finishCoated
Coating processPVD
Corner radius0.0300
Hole diameter0.1118
Included angle degree60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size11
Insert size code110208
Insert styleTDEX
Iso codeTDEX-110208-XDEN-DPP30UM
Length0.4331
Manufacturers catalog numberTDEX-110208-XDEN-DPP30UM
Manufacturer gradeDPP30UM
Material applicationSteel
Material gradeP15-P30
Primary workpiece materialSteel
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.4331
