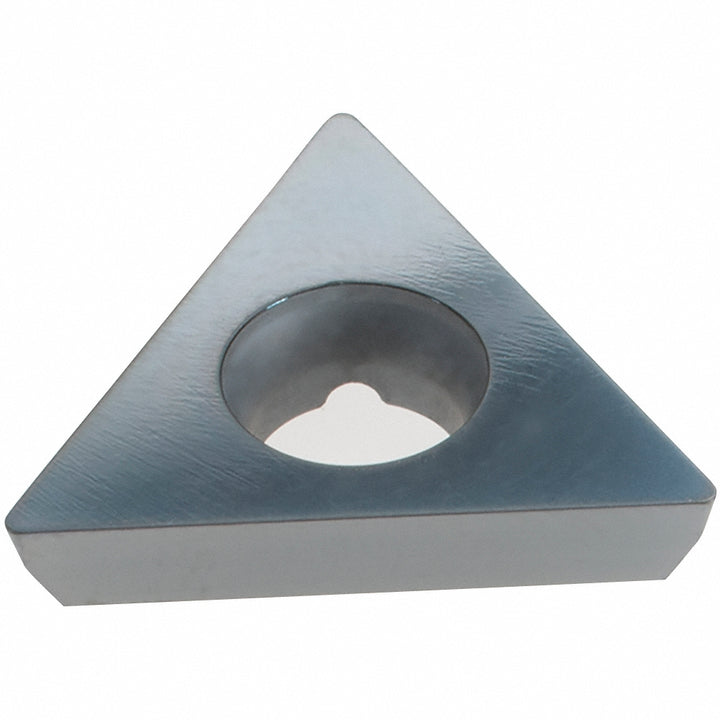

TDEX-160304-XDEN-DPP30UM Solid Carbide Insert, Grade DPP30UM, Coated - Dorian Tool 73310195447
MFR# 73310195447ISO/ANSI# TDEX-160304-XDEN-DPP30UMCat# TDEX-160304-XDEN-DPP30UMSeries TDEX
$17.90List $22.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDPP30UM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195447 is a TDEX-160304-XDEN-DPP30UM solid carbide indexable insert, grade DPP30UM, Coated coated. Suited for steel.
Specifications
Ansi codeTDEX-160304-XDEN-DPP30UM
Chip breakerDPP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Included angle degree60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code160304
Insert styleTDEX
Iso codeTDEX-160304-XDEN-DPP30UM
Length0.8661
Manufacturers catalog numberTDEX-160304-XDEN-DPP30UM
Manufacturer gradeDPP30UM
Material applicationSteel
Material gradeP15-P30
Primary workpiece materialSteel
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
