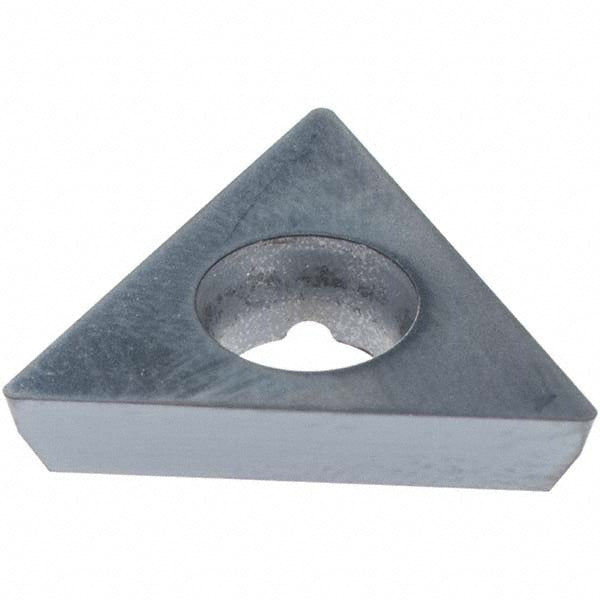

TDEX-160304-XDEN-DNP10HM Solid Carbide Insert, Grade DNP10HM, Coated - Dorian Tool 73310195451
MFR# 73310195451ISO/ANSI# TDEX-160304-XDEN-DNP10HMCat# TDEX-160304-XDEN-DNP10HMSeries TDEX
$20.08List $25.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeDNP10HM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195451 is a TDEX-160304-XDEN-DNP10HM solid carbide indexable insert, grade DNP10HM, Coated coated. Suited for cast iron.
Specifications
Ansi codeTDEX-160304-XDEN-DNP10HM
Chip breakerDNP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Hole diameter0.1799
Included angle degree60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size16
Insert size code160304
Insert styleTDEX
Iso codeTDEX-160304-XDEN-DNP10HM
Length0.6299
Manufacturers catalog numberTDEX-160304-XDEN-DNP10HM
Manufacturer gradeDNP10HM
Material applicationCast Iron
Material gradeK10
Primary workpiece materialCast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6299
