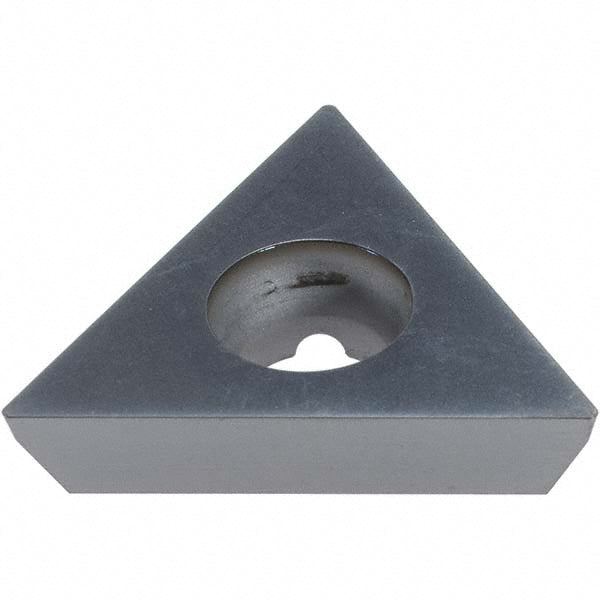

TDEX-220404-XDEN-DPP30UM Solid Carbide Insert, Grade DPP30UM, Coated - Dorian Tool 73310195461
MFR# 73310195461ISO/ANSI# TDEX-220404-XDEN-DPP30UMCat# TDEX-220404-XDEN-DPP30UMSeries TDEX
$26.70List $34.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeDPP30UM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195461 is a TDEX-220404-XDEN-DPP30UM solid carbide indexable insert, grade DPP30UM, Coated coated. Suited for steel.
Specifications
Ansi codeTDEX-220404-XDEN-DPP30UM
Chip breakerDPP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Hole diameter0.2228
Included angle degree60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size22
Insert size code220404
Insert styleTDEX
Iso codeTDEX-220404-XDEN-DPP30UM
Length0.8661
Manufacturers catalog numberTDEX-220404-XDEN-DPP30UM
Manufacturer gradeDPP30UM
Material applicationSteel
Material gradeP15-P30
Primary workpiece materialSteel
RakePositive
Relief angle15
Single or double sided insertSingle
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.8661
