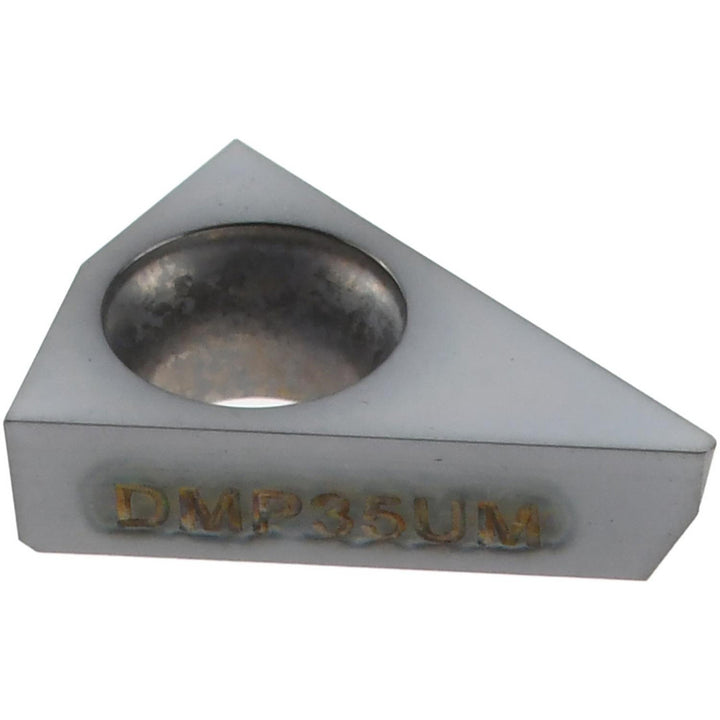

TDEX-090202-XDEN-DMP35UM Solid Carbide Insert, Grade DMP35UM - Dorian Tool 73310195493

MFR# 73310195493ISO/ANSI# TDEX-090202-XDEN-DMP35UMCat# TDEX-090202-XDEN-DMP35UMSeries TDEX

$19.16List $24.58 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

ShapeTriangle

GradeDMP35UM

MaterialSolid Carbide

Description

The Dorian Tool 73310195493 is a TDEX-090202-XDEN-DMP35UM solid carbide indexable insert, grade DMP35UM. Suited for superalloys & titanium, stainless steel.

Specifications

Ansi codeTDEX-090202-XDEN-DMP35UM

Chip breakerDMP

Coating processPVD

Corner radius0.0080

Hole diameter0.1118

Included angle degree45

Inscribed circle0.3740

Inscribed circle range0.3500 to 0.4000

Insert handNeutral

Insert holding methodScrew

Insert materialSolid Carbide

Insert shapeTriangle

Insert size09

Insert size code090202

Insert styleTDEX

Iso codeTDEX-090202-XDEN-DMP35UM

Length0.2559

Manufacturers catalog numberTDEX-090202-XDEN-DMP35UM

Manufacturer gradeDMP35UM

Material applicationHigh-Temperature Alloy; Stainless Steel

Material gradeS35; M35

Primary workpiece materialSuperalloys & Titanium; Stainless Steel

RakePositive

Relief angle11.00

Single or double sided insertSingle

Thickness in3/32

Thickness range0.0000 to 0.1000

Width0.2559
