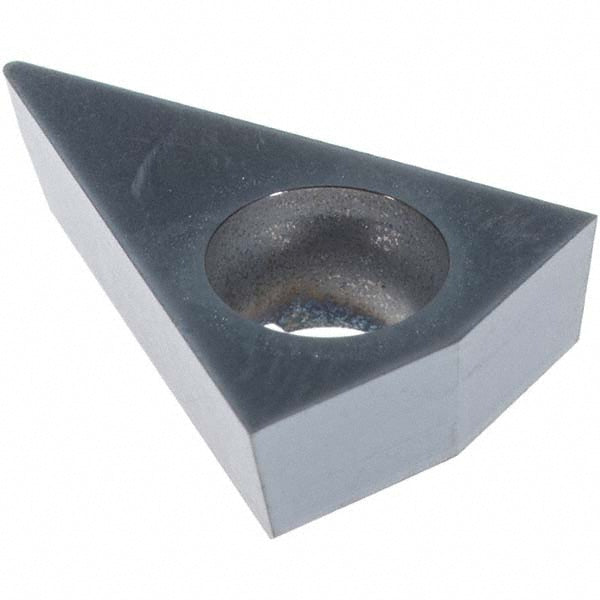

TDEX-17T304-XDEN-DPP30UM Solid Carbide Insert, Grade DPP30UM, Coated - Dorian Tool 73310195511
MFR# 73310195511ISO/ANSI# TDEX-17T304-XDEN-DPP30UMCat# TDEX-17T304-XDEN-DPP30UMSeries TDEX
$20.65List $26.03
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeDPP30UM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195511 is a TDEX-17T304-XDEN-DPP30UM solid carbide indexable insert, grade DPP30UM, Coated coated. Suited for steel.
Specifications
Ansi codeTDEX-17T304-XDEN-DPP30UM
Chip breakerDPP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Hole diameter0.1799
Included angle degree45
Inscribed circle0.6700
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size17
Insert size code17T304
Insert styleTDEX
Iso codeTDEX-17T304-XDEN-DPP30UM
Length0.4783
Manufacturers catalog numberTDEX-17T304-XDEN-DPP30UM
Manufacturer gradeDPP30UM
Material applicationSteel
Material gradeP15-P30
Primary workpiece materialSteel
RakePositive
Relief angle11
Single or double sided insertSingle
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.4783
