Dorian Tool

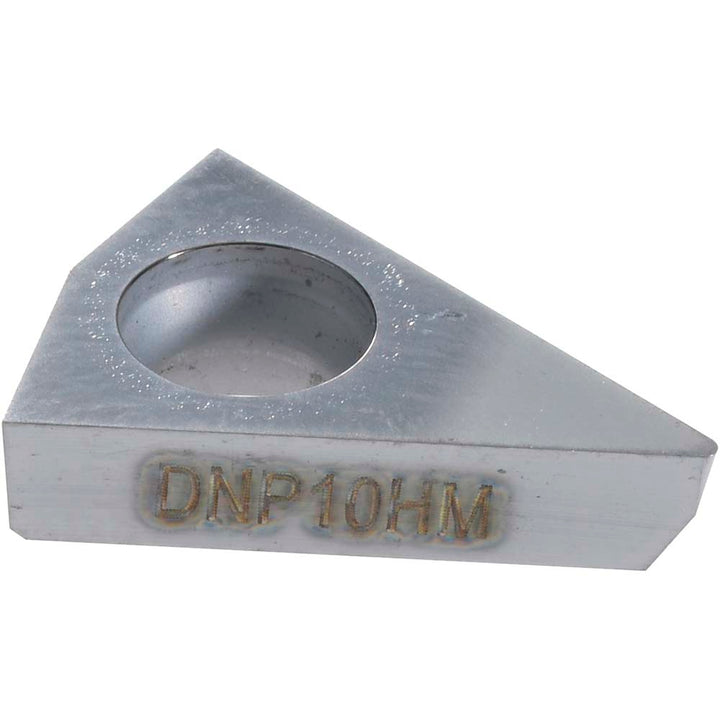

TDEX-17T304-XDEN-DNP10HM Solid Carbide Insert, Grade DNP10HM, Coated - Dorian Tool 73310195518
MFR# 73310195518ISO/ANSI# TDEX-17T304-XDEN-DNP10HMCat# TDEX-17T304-XDEN-DNP10HMSeries TDEX
$20.29List $26.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeDNP10HM
MaterialSolid Carbide
CoatingCoated
Description
The Dorian Tool 73310195518 is a TDEX-17T304-XDEN-DNP10HM solid carbide indexable insert, grade DNP10HM, Coated coated. Suited for cast iron.
Specifications
Ansi codeTDEX-17T304-XDEN-DNP10HM
Chip breakerDNP
Coating finishCoated
Coating processPVD
Corner radius0.0150
Hole diameter0.1799
Included angle degree45
Inscribed circle0.6700
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTriangle
Insert size17
Insert size code17T304
Insert styleTDEX
Iso codeTDEX-17T304-XDEN-DNP10HM
Length0.4783
Manufacturers catalog numberTDEX-17T304-XDEN-DNP10HM
Manufacturer gradeDNP10HM
Material applicationCast Iron
Material gradeK10
Primary workpiece materialCast Iron
RakePositive
Relief angle11
Single or double sided insertSingle
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.4783
