45/64" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966660

Dormer Pramet

45/64" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966660

MFR# 5966660Series A012

$57.03List $73.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size45/64
Flutes2
CoatingTiN

Description

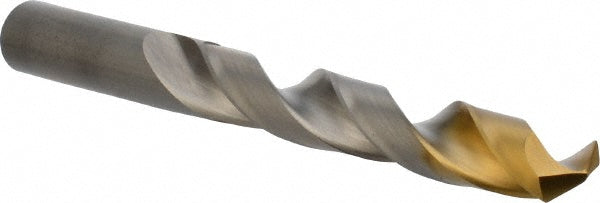

The Dormer Pramet 5966660 is a 45/64" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. 5-5/8 flute length, 7-5/8 overall length. Series A012.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in45/64
Drill bit size range0.6500+
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in5-5/8
Material gradeM2
Number of flutes2
Overall length in7-5/8
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3750
Shank typeStraight
StandardsANSI
Tool applicationCentering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
