5/16" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966676

Dormer Pramet

5/16" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966676

MFR# 5966676Series A012

$5.51List $7.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
CoatingTiN

Description

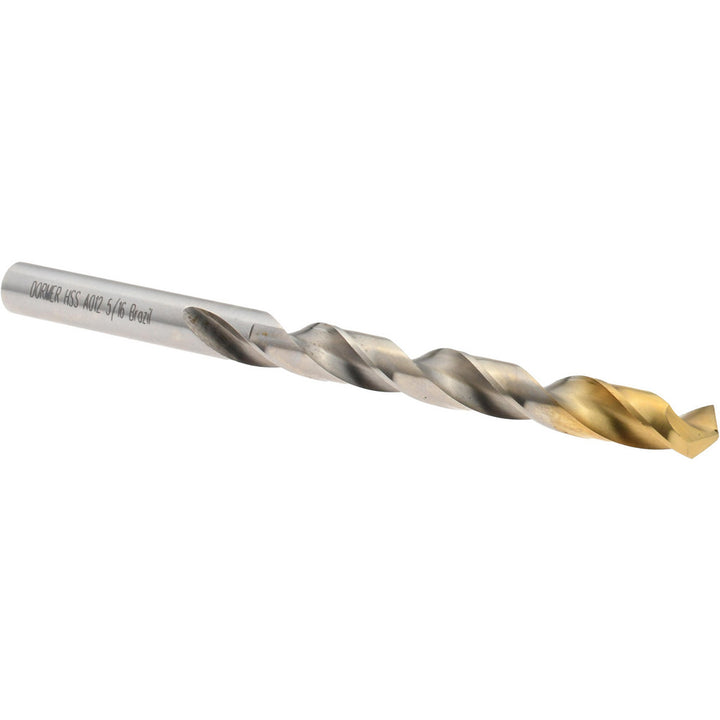

The Dormer Pramet 5966676 is a 5/16" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. 3-3/16 flute length, 4-1/2 overall length. Series A012.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in3-3/16
Flute typeRegular Spiral
Overall length in4-1/2
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3125
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationSelf-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
