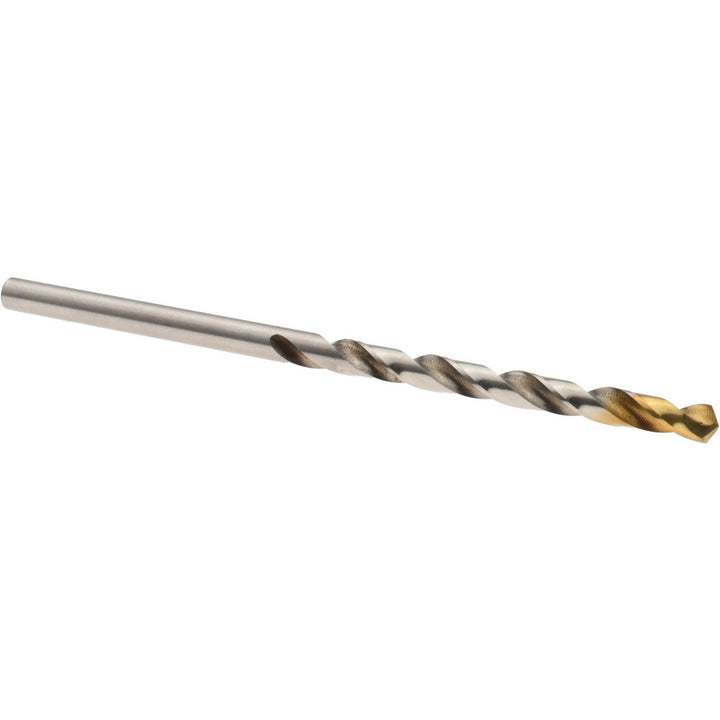

1/8" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966747

Dormer Pramet

1/8" HSS Drill Bit, TiN, 118° point - Dormer Pramet 5966747

MFR# 5966747Series A012

$1.86List $2.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
CoatingTiN

Description

The Dormer Pramet 5966747 is a 1/8" HSS drill bit with a TiN finish, 118° point. Suited for steel, cast iron. 1-5/8 flute length, 2-3/4 overall length. Series A012.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length in1-5/8
Flute typeRegular Spiral
Overall length in2-3/4
Point typeSplit Point
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1250
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationSelf-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
