Dormer Pramet

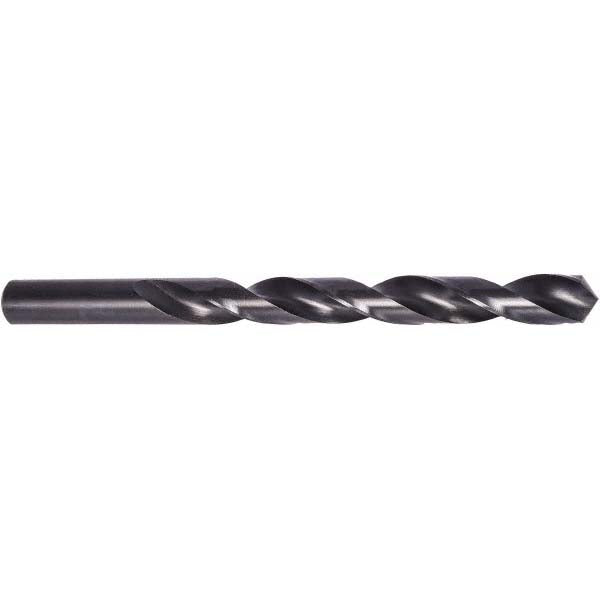

0.2402" HSS Drill Bit, Oxide, 118° point - Dormer Pramet 5966772
MFR# 5966772
$5.39List $6.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Dormer Pramet 5966772 is a 0.2402" HSS drill bit with a Oxide finish, 118° point.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.000 to -0.022 mm
Drill bit materialHSS
Drill bit size0.2402
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute by diameter ratio4xD
Flute length2.4822
Flute typeRegular Spiral
Material gradeM2
Number of flutes2
Overall length3.9794
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
