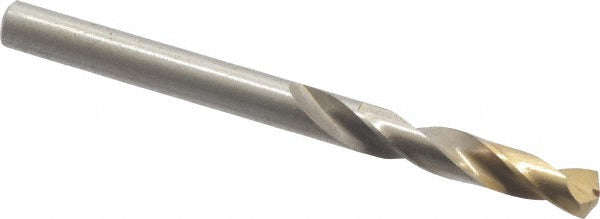

11/64" HSS Screw Machine Drill Bit, TiN, 135° point - Dormer Pramet 5967277

Dormer Pramet

11/64" HSS Screw Machine Drill Bit, TiN, 135° point - Dormer Pramet 5967277

MFR# 5967277Series A022

$4.18List $5.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTiN

Description

The Dormer Pramet 5967277 is a 11/64" HSS Screw Machine drill bit with a TiN finish, 135° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series A022.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in11/64
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length (mm)28.00
Flute typeRegular Spiral
Number of flutes2
Overall length2.1654
Point typeSplit Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.1719
Shank length1.0630
Shank typeStraight
Specification designationANSI; DIN
Spiral typeRegular
StandardsANSI; DIN
Tool materialHSS
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
