Dormer Pramet

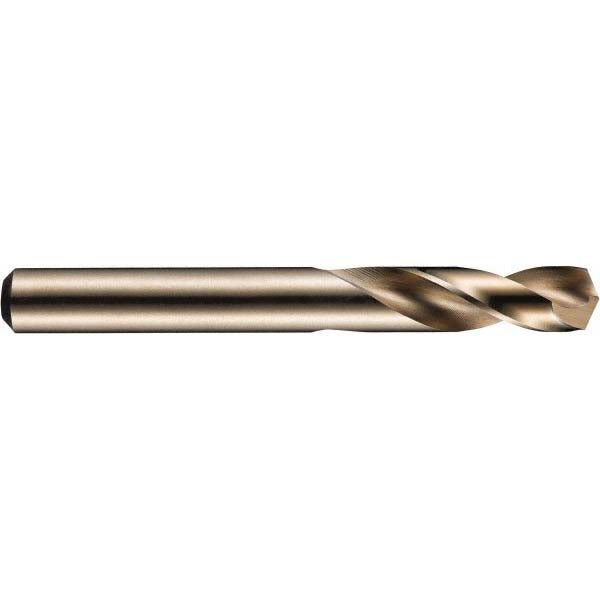

0.4134" Cobalt Stub Drill Bit, Straw, 135° point - Dormer Pramet 5967860
MFR# 5967860Series A117
$26.30List $33.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Dormer Pramet 5967860 is a 0.4134" Cobalt Stub drill bit with a Straw finish, 135° point. Series A117.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.000 to -0.027 mm
Drill bit size0.4134
Drill bit size range0.4000 to 0.4500
Drill length typeStub
Drill point angle135
Flute by diameter ratio2.5xD
Flute length1.6942
Flute typeRegular Spiral
Material gradeM2
Number of flutes2
Overall length3.5066
Point typeSplit Point
Shank diameter0.4134
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
