Dormer Pramet

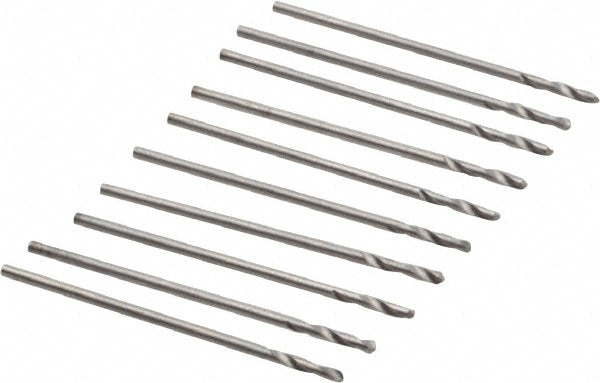

1/32" HSS Screw Machine Drill Bit, Oxide, 135° point - Dormer Pramet 5968484
MFR# 5968484Series A120
$2.03List $2.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/32
Flutes2
CoatingOxide
Description
The Dormer Pramet 5968484 is a 1/32" HSS Screw Machine drill bit with a Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, high-temp alloy. Series A120.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.000 to -0.014 mm
Drill bit size in1/32
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length0.1970
Flute typeRegular Spiral
Number of flutes2
Overall length0.9456
Point typeSplit Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Shank diameter0.0311
Shank length0.7486
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Tool performanceHigh Performance
Web configurationTapered
