Dormer Pramet
1/8" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970041
MFR# 5970041Series A510
$11.13List $14.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingTiN
Description

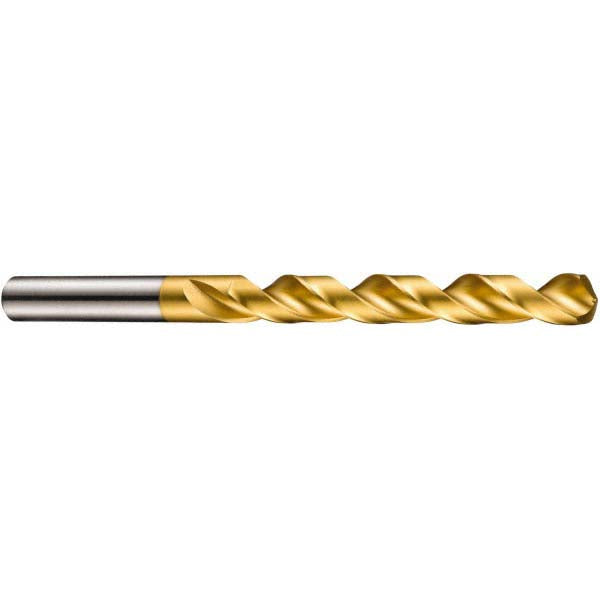

The Dormer Pramet 5970041 is a 1/8" HSS drill bit with a TiN finish, 130° point. Suited for aluminum & non-ferrous, composites. Series A510.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio4xD
Flute length1.4173
Flute typeRegular Spiral
Overall length2.5591
Point typeWeb-Thinned
Primary workpiece materialAluminum & Non-Ferrous; Composites
Shank diameter in1/8
Shank length (mm)29
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
