Dormer Pramet

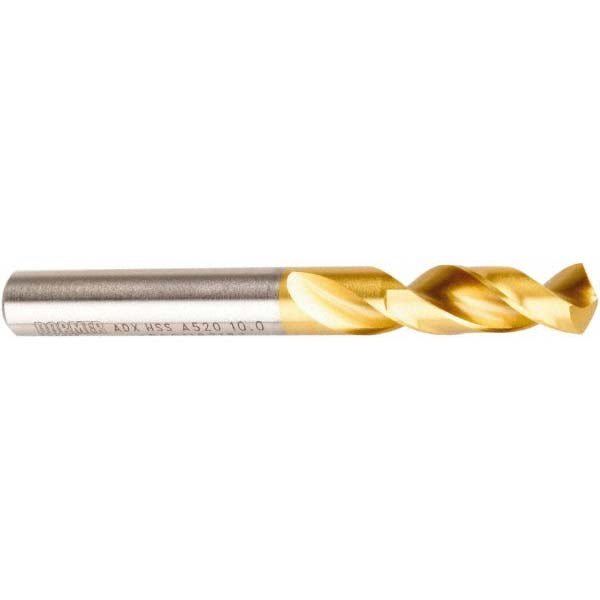

13/32" HSS Screw Machine Drill Bit, TiN, 130° point - Dormer Pramet 5970232
MFR# 5970232Series A520
$35.32List $45.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
CoatingTiN
Description
The Dormer Pramet 5970232 is a 13/32" HSS Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series A520.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio2.5xD
Flute length (mm)43.00
Flute typeRegular Spiral
Number of flutes2
Overall length3.5039
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.4062
Shank length1.8110
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
