Dormer Pramet

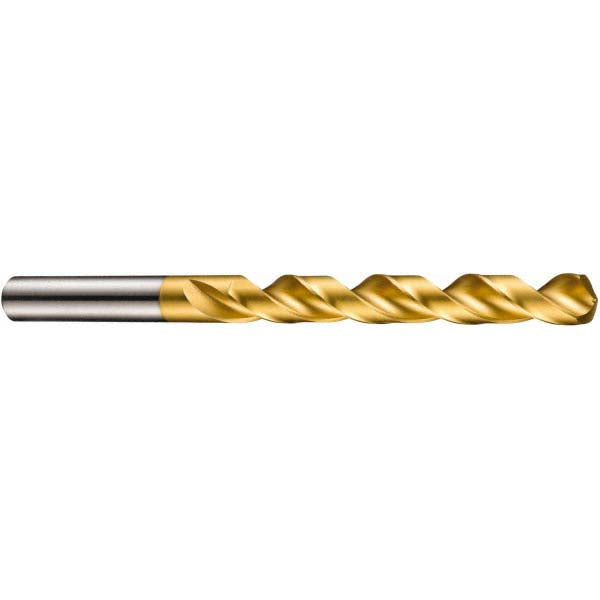

13/64" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970403
MFR# 5970403Series A510
$13.88List $17.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/64
CoatingTiN
Description
The Dormer Pramet 5970403 is a 13/64" HSS drill bit with a TiN finish, 130° point. Suited for aluminum & non-ferrous, composites. Series A510.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size in13/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Flute by diameter ratio4xD
Flute length2.0472
Flute typeRegular Spiral
Overall length3.3858
Point typeWeb-Thinned
Primary workpiece materialAluminum & Non-Ferrous; Composites
Shank diameter0.3125
Shank length (mm)34
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
