Dormer Pramet

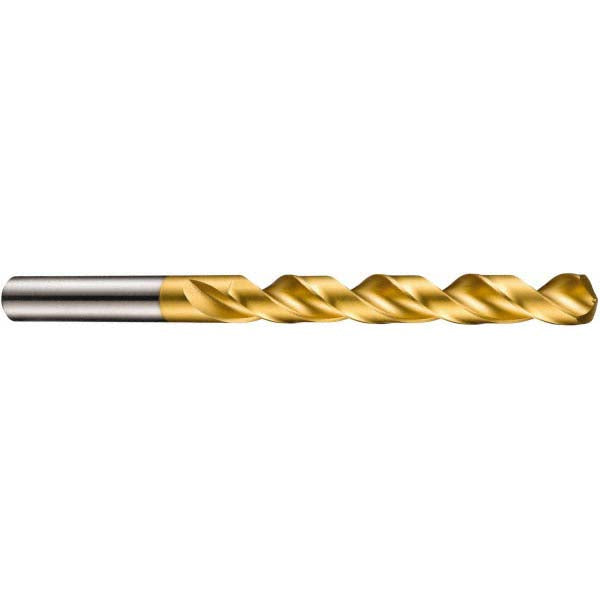

0.1378" HSS Drill Bit, TiN, 130° point - Dormer Pramet 5970443
MFR# 5970443Series A510
$11.81List $15.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Dormer Pramet 5970443 is a 0.1378" HSS drill bit with a TiN finish, 130° point. Suited for aluminum & non-ferrous, composites. Series A510.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1378
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute by diameter ratio4xD
Flute length1.5354
Flute typeRegular Spiral
Overall length2.7559
Point typeWeb-Thinned
Primary workpiece materialAluminum & Non-Ferrous; Composites
Shank diameter0.1875
Shank length (mm)31
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Web configurationTapered
Web thinningWeb-Thinned
