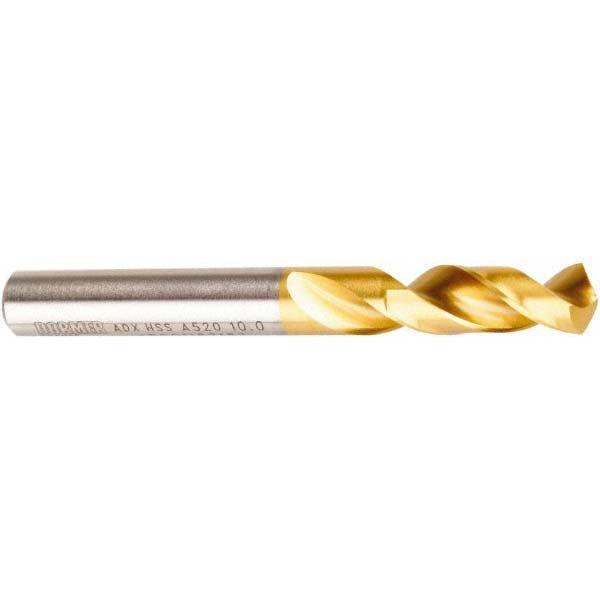

3/8" HSS Screw Machine Drill Bit, TiN, 130° point - Dormer Pramet 5970455

Dormer Pramet

3/8" HSS Screw Machine Drill Bit, TiN, 130° point - Dormer Pramet 5970455

MFR# 5970455Series A520

$27.04List $34.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingTiN

Description

The Dormer Pramet 5970455 is a 3/8" HSS Screw Machine drill bit with a TiN finish, 130° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series A520.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in3/8
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle130
Flute by diameter ratio2.5xD
Flute length (mm)43.00
Flute typeRegular Spiral
Number of flutes2
Overall length3.5039
Point typeWeb-Thinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3750
Shank length1.8110
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
