Dormer Pramet

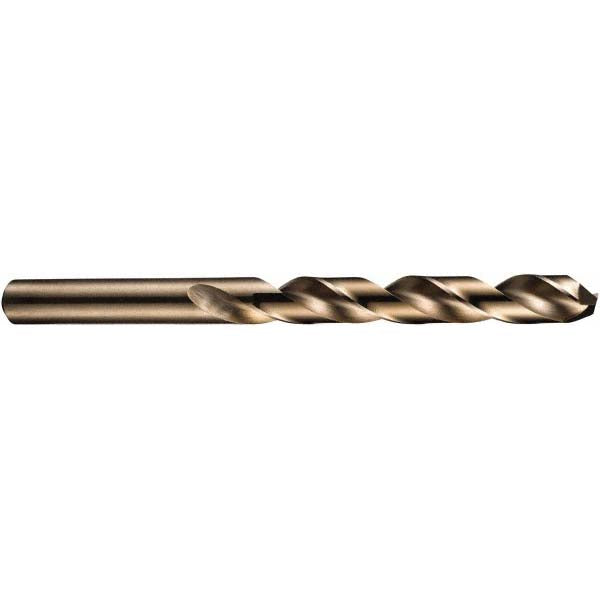

1/16" Cobalt Drill Bit, 135° point - Dormer Pramet 5971004
MFR# 5971004
$6.18List $7.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The Dormer Pramet 5971004 is a 1/16" Cobalt drill bit, 135° point.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.000 to -0.014 mm
Drill bit materialCobalt
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees135
Flute by diameter ratio4xD
Flute length0.7880
Flute typeRegular Spiral
Number of flutes2
Overall length1.6942
Shank typeStraight
Specification designationDIN; NAS
Spiral typeRegular
Web configurationTapered
