Dormer Pramet

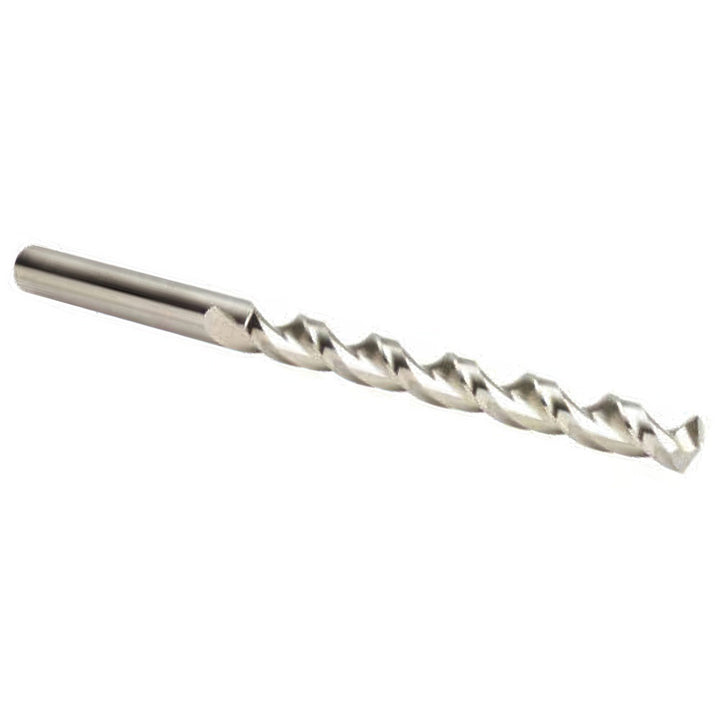

7/16" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5972274
MFR# 5972274Series A940
$56.07List $70.66
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Description
The Dormer Pramet 5972274 is a 7/16" HSS-E Cobalt drill bit, 130° point. Series A940.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size in7/16
Drill point angle degrees130
Flute length (mm)117.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; High-Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Stainless Steel; Steel; Tempered Steel; Thermoplastic; Thermosetting Plastic
Material gradeM42
Overall length (mm)184
Point typeSpecial
Shank diameter0.4375
Shank length (mm)67.00
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsDIN ANSI
Threaded shankNo
Tool materialHSS-E Cobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
