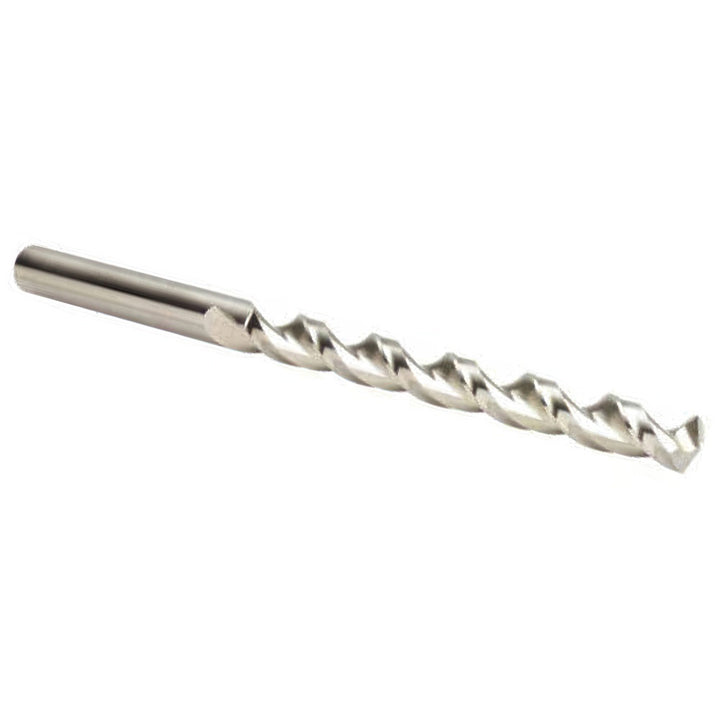

0.1575" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5973252

Dormer Pramet

0.1575" HSS-E Cobalt Drill Bit, 130° point - Dormer Pramet 5973252

MFR# 5973252Series A940

$9.64List $12.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Dormer Pramet 5973252 is a 0.1575" HSS-E Cobalt drill bit, 130° point. Series A940.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit size0.1575
Drill point angle degrees130
Flute length (mm)78.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; High-Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Stainless Steel; Steel; Tempered Steel; Thermoplastic; Thermosetting Plastic
Material gradeM42
Overall length (mm)119
Point typeSpecial
Shank diameter0.1575
Shank length (mm)41.00
Shank typeStraight-Cylindrical
Spiral typeFast
StandardsDIN ANSI
Threaded shankNo
Tool materialHSS-E Cobalt
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
