Dormer Pramet

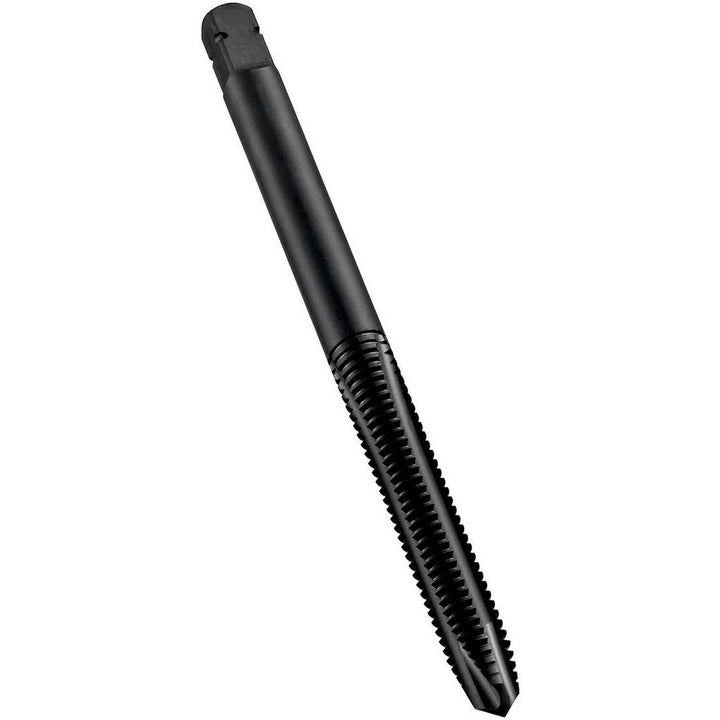

3/8-16 UNC HSS Spiral Point Tap, Steam Oxide - Dormer Pramet 5974145
MFR# 5974145Series E026
$18.94List $24.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingSteam Oxide
Description
The Dormer Pramet 5974145 is a 3/8-16 UNC HSS Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationSteel; Cast Steel; Stainless Steel; Cast Iron
Measurement typeFractional Inch
Neck length0.6895
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
StyleSpiral Point
Threads per inch16
Thread directionRight Hand
Thread length0.6020
Thread limitH3
Thread pitch0.0625
Thread size in3/8-16
Thread standardUNC
