Dormer Pramet

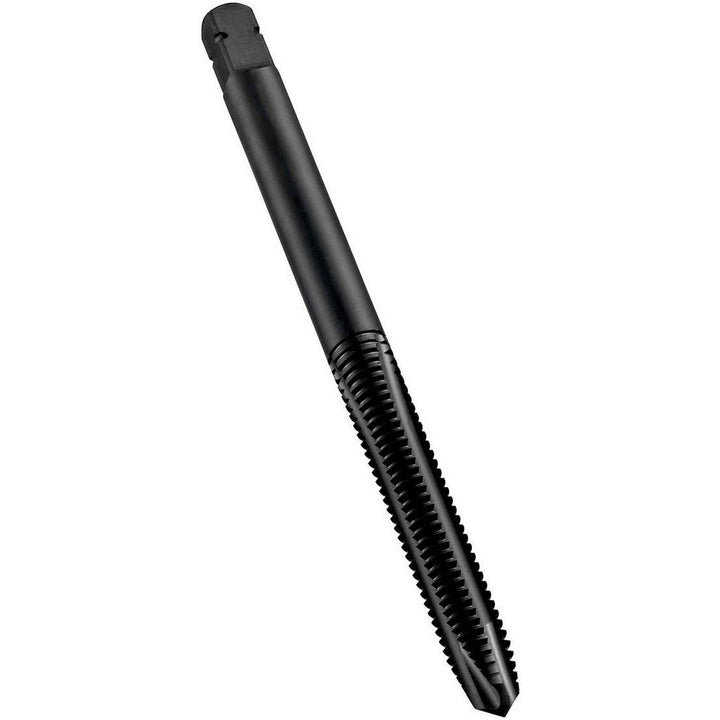

#8-32 UNC HSS Spiral Point Tap, Steam Oxide - Dormer Pramet 5974203
MFR# 5974203Series E026
$14.77List $18.94
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#8-32
CoatingSteam Oxide
Description
The Dormer Pramet 5974203 is a #8-32 UNC HSS Spiral Point tap with a Steam Oxide finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationSteel; Cast Steel; Stainless Steel; Cast Iron
Measurement typeFractional Inch
Neck length0.4042
Number of flutes2
Overall length in2-1/8
OversizeNo
Shank diameter0.1680
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length0.2484
Thread limitH2
Thread pitch0.0313
Thread size in#8-32
Thread standardUNC
