Dormer Pramet
5/16-24 UNF HSS-E-PM Spiral Point Tap, Steam Oxide - Dormer Pramet 5974624
MFR# 5974624Series E036
$14.72List $18.55
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingSteam Oxide
Description

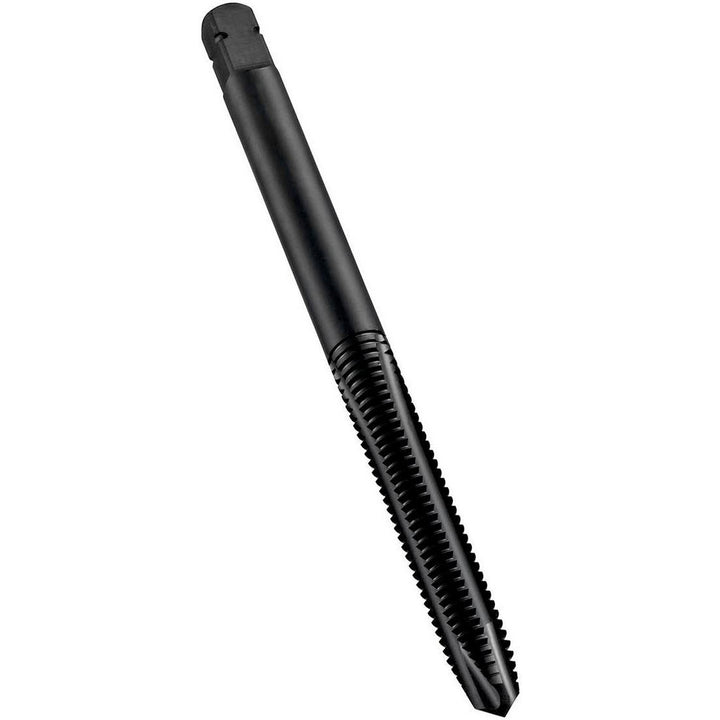

The Dormer Pramet 5974624 is a 5/16-24 UNF HSS-E-PM Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Cast Steel; Stainless Steel; Cast Iron
Measurement typeFractional Inch
Neck length0.5952
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in19/32
Thread limitH3
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
