Dormer Pramet

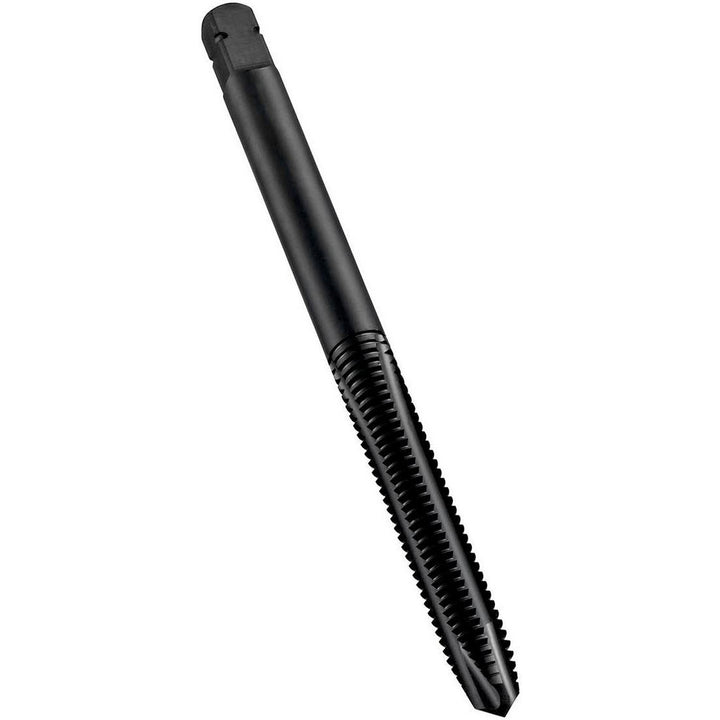

7/16-20 UNF HSS-E-PM Spiral Point Tap, Steam Oxide - Dormer Pramet 5974633
MFR# 5974633Series E036
$31.43List $40.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingSteam Oxide
Description
The Dormer Pramet 5974633 is a 7/16-20 UNF HSS-E-PM Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Cast Steel; Stainless Steel; Cast Iron
Measurement typeFractional Inch
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.9055
Thread limitH3
Thread pitch0.05
Thread size in7/16-20
Thread standardUNF
