Dormer Pramet

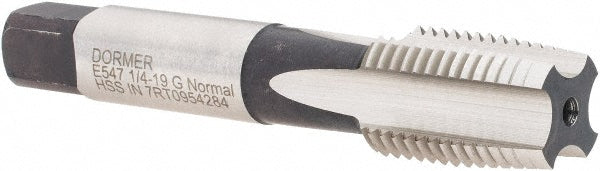

1/4-19 G(BSP) HSS Straight Flute Tap - Dormer Pramet 5976327
MFR# 5976327Series E547
$52.73List $67.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-19
Description
The Dormer Pramet 5976327 is a 1/4-19 G(BSP) HSS Straight Flute tap. 4 flutes.
Specifications
ApplicationBlind & Through-Hole Threading
ChamferTaper
Coolant throughNo
MaterialHSS
Material applicationCarbon Steel
Number of flutes4
Overall length (mm)67.00
Shank diameter (mm)10.00
Shank length (mm)48.00
Square size (mm)8.00
Tap typeStraight Flute
Thread directionRight Hand
Thread length (mm)19.00
Thread size in1/4-19
Thread standardG(BSP)
