Dormer Pramet

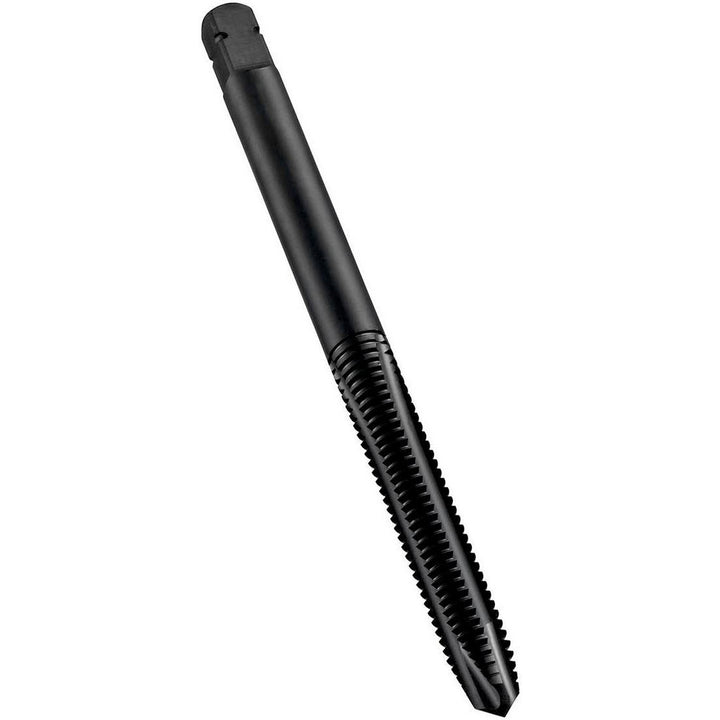

3/16-24 BSW HSS Spiral Point Tap, Steam Oxide - Dormer Pramet 5976539
MFR# 5976539Series E534
$27.98List $35.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/16-24
CoatingSteam Oxide
Description
The Dormer Pramet 5976539 is a 3/16-24 BSW HSS Spiral Point tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fitMedium
Coating finishSteam Oxide
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationSteel; Cast Steel; Stainless Steel; Cast Iron
Material gradeM2
Measurement typeDecimal Inch
Neck length0.3543
Number of flutes3
Overall length2.2835
OversizeNo
Shank diameter0.1969
Square size (mm)4.00
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length0.4334
Thread pitch0.0417
Thread size in3/16-24
Thread standardBSW
