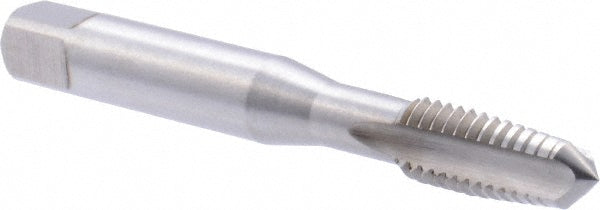

3/8-16 UNC High-Speed Steel Machine Tap - Dormer Pramet 5977176

Dormer Pramet

3/8-16 UNC High-Speed Steel Machine Tap - Dormer Pramet 5977176

MFR# 5977176Series E515

$27.20List $34.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size3/8-16

Description

The Dormer Pramet 5977176 is a 3/8-16 UNC High-Speed Steel Machine tap. 3 flutes.

Specifications

ChamferTaper
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastic
Material gradeM2
Number of flutes3
Overall length3.1520
OversizeNo
Shank diameter0.3940
Square size0.3152
Tapping depth (mm)32.00
Tap typeMachine
Thread directionRight Hand
Thread length0.7092
Thread size in3/8-16
Thread standardUNC
