5/16-18 BSW High-Speed Steel Machine Tap - Dormer Pramet 5977345

Dormer Pramet

5/16-18 BSW High-Speed Steel Machine Tap - Dormer Pramet 5977345

MFR# 5977345Series E531

$22.29List $28.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size5/16-18

Description

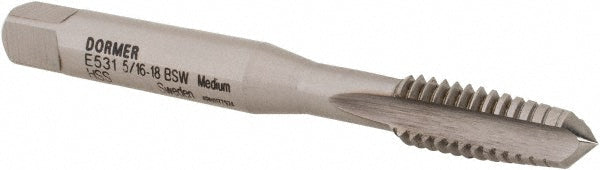

The Dormer Pramet 5977345 is a 5/16-18 BSW High-Speed Steel Machine tap. 3 flutes.

Specifications

ApplicationBlind Hole Threading; Through-Hole Threading
ChamferTaper
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastic
Material gradeM2
Number of flutes3
Overall length2.8368
OversizeNo
Shank diameter0.3152
Square size0.2482
Tapping depth (mm)29.00
Tap typeMachine
Threads per inch18
Thread directionRight Hand
Thread length0.6304
Thread size in5/16-18
Thread standardBSW
