Dormer Pramet

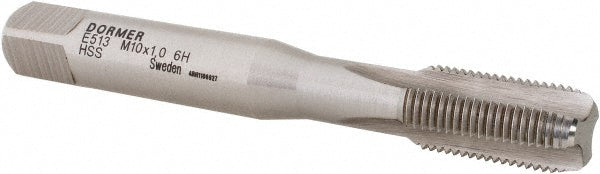

M10x1 Metric Fine High-Speed Steel Machine Tap - Dormer Pramet 5977407
MFR# 5977407Series E513
$26.40List $33.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Dormer Pramet 5977407 is a Metric Fine High-Speed Steel Machine tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit6H
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastic
Material gradeM2
Number of flutes3
Overall length3.1520
OversizeNo
Shank diameter0.3940
Square length (mm)11.00
Square size0.3152
Tapping depth (mm)34.00
Tap typeMachine
Thread directionRight Hand
Thread length0.7092
Thread pitch (mm)1.00
Thread size (mm)M10x1
Thread standardMetric Fine
