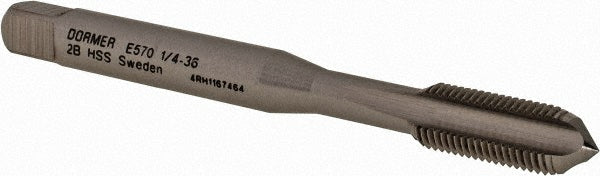

1/4-36 UN High-Speed Steel Machine Tap - Dormer Pramet 5977460

Dormer Pramet

1/4-36 UN High-Speed Steel Machine Tap - Dormer Pramet 5977460

MFR# 5977460Series E570

$31.39List $40.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size1/4-36

Description

The Dormer Pramet 5977460 is a 1/4-36 UN High-Speed Steel Machine tap. 3 flutes.

Specifications

ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAlloy Steel; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Copper Alloy; Hardened Steel; Plastic; Steel; Structural Steel; Thermosetting Plastic
Material gradeM2
Number of flutes3
Overall length2.6004
OversizeNo
Shank diameter0.2482
Square size0.1970
Tapping depth (mm)26.00
Tap typeMachine
Threads per inch36
Thread directionRight Hand
Thread length0.5122
Thread size in1/4-36
Thread standardUN
