Dormer Pramet

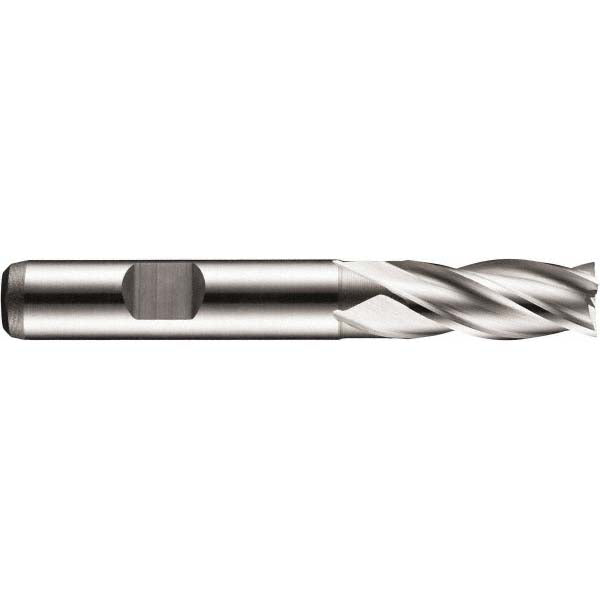

0.7092" 4-Flute High Speed Steel Square End Mill - Dormer Pramet 5984290
MFR# 5984290Series C247
$89.72List $115.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialHigh Speed Steel
CoatingBright/Uncoated
Description
The Dormer Pramet 5984290 is a 0.7092 4-flute High Speed Steel square end mill. 1.2608 length of cut. Series C247.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
End typeSquare
Extended reachYes
Flute directionRight Hand
Helix angle30
Length of cut1.2608
Length typeRegular
Maximum helix angle30
Mill diameter0.7092
Mill diameter tolerance+0.070/0.000 mm
Number of flutes4
Shank diameter (mm)16.00
Shank typeWeldon Flat
Single or double endSingle
