Dormer Pramet
0.0784" Cobalt Steel Reamer - Dormer Pramet 5986238
MFR# 5986238Series B170
$66.67List $85.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description

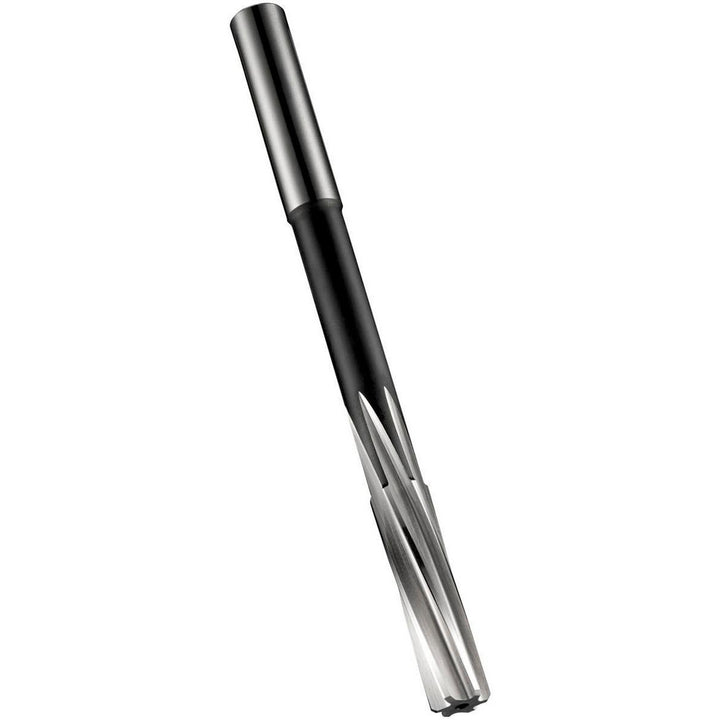

The Dormer Pramet 5986238 is a 0.0784 Cobalt Steel reamer.
Specifications
Additional informationCentesimal Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 1.99mm with an Overall Length of 49mm; A Flute Length of 11mm & 24mm Reach with Neck Relief; According to DIN 212 Standard with a Diameter Tolerance of 0/+0.004Mm to Produ
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)11.00
Flute typeSpiral
Number of flutes4
Overall length1.9306
Over under size reamerNo
Reamer diameter0.0784
Reamer diameter range0.0500 - 0.0999
Reamer diameter tolerance0.000 to +0.004 mm
Shank diameter (mm)2.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
