0.3940" Cobalt Steel Reamer - Dormer Pramet 5986617

Dormer Pramet

0.3940" Cobalt Steel Reamer - Dormer Pramet 5986617

MFR# 5986617Series B180

$69.00List $88.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes6

Description

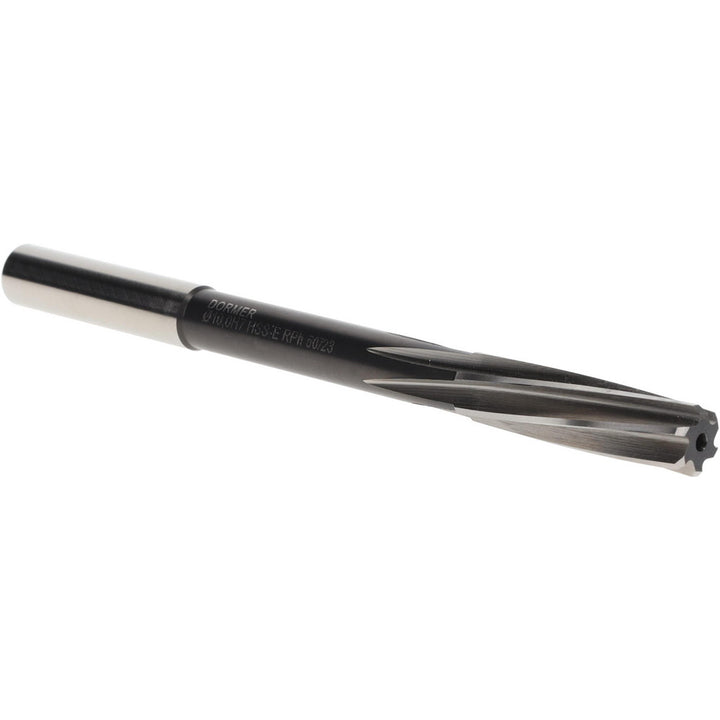

The Dormer Pramet 5986617 is a 0.3940 Cobalt Steel reamer.

Specifications

Additional informationMachine Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 10.00mm with an Overall Length of 133mm; A Flute Length of 38mm & 87mm Reach with Neck Relief; According to DIN 212 Standard For Reaming Precise Holes Within H7 Tolerance; Co
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)38.00
Flute typeSpiral
Number of flutes6
Overall length5.2402
Over under size reamerNo
Reamer diameter0.3940
Reamer diameter range0.3500 - 0.3999
Reamer diameter tolerance+0.015 to 0.000 mm
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
