Dormer Pramet

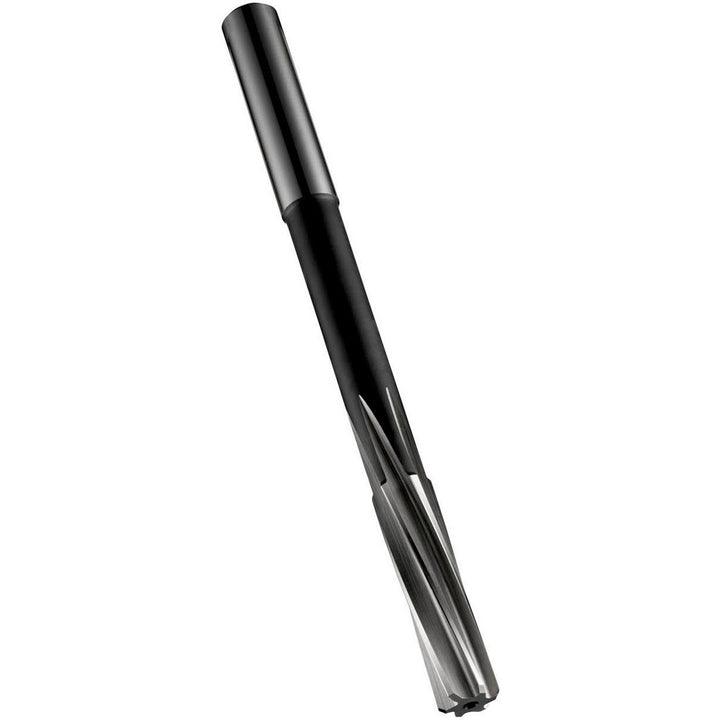

0.1182" Cobalt Steel Reamer - Dormer Pramet 5986677
MFR# 5986677Series B180
$38.95List $49.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Dormer Pramet 5986677 is a 0.1182 Cobalt Steel reamer.
Specifications
Additional informationMachine Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 3.00mm with an Overall Length of 61mm; A Flute Length of 15mm & 32mm Reach with Neck Relief; According to DIN 212 Standard For Reaming Precise Holes Within H7 Tolerance; Coba
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)15.00
Flute typeSpiral
Number of flutes6
Overall length2.4034
Over under size reamerNo
Reamer diameter0.1182
Reamer diameter range0.1000 - 0.1499
Reamer diameter tolerance+0.010 to 0.000 mm
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
