Dormer Pramet

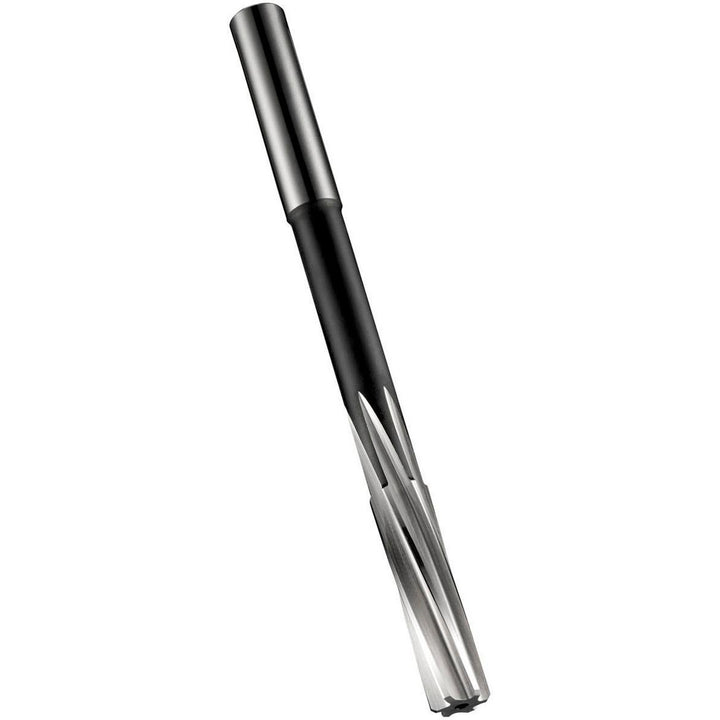

0.2368" Cobalt Steel Reamer - Dormer Pramet 5986696
MFR# 5986696Series B170
$71.11List $91.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Dormer Pramet 5986696 is a 0.2368 Cobalt Steel reamer.
Specifications
Additional informationCentesimal Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 6.01mm with an Overall Length of 101mm; A Flute Length of 28mm & 63mm Reach with Neck Relief; According to DIN 212 Standard with a Diameter Tolerance of 0/+0.005Mm to Prod
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)28.00
Flute typeSpiral
Number of flutes6
Overall length3.9794
Over under size reamerNo
Reamer diameter0.2368
Reamer diameter range0.2000 - 0.2499
Reamer diameter tolerance0.000 to +0.005 mm
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
