Dormer Pramet

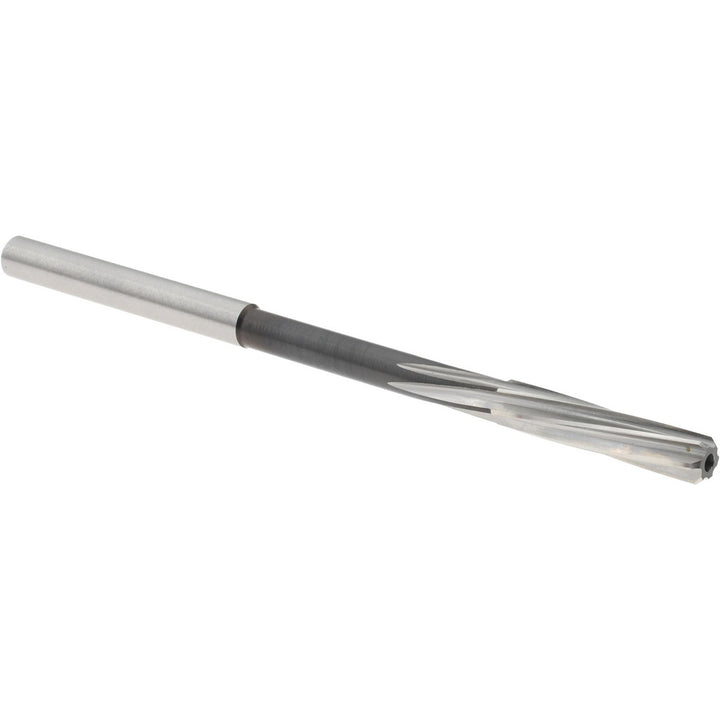

0.1576" Cobalt Steel Reamer - Dormer Pramet 5986716
MFR# 5986716Series B180
$42.34List $54.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Dormer Pramet 5986716 is a 0.1576 Cobalt Steel reamer.
Specifications
Additional informationMachine Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 4.00mm with an Overall Length of 75mm; A Flute Length of 19mm & 43mm Reach with Neck Relief; According to DIN 212 Standard For Reaming Precise Holes Within H7 Tolerance; Coba
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)19.00
Flute typeSpiral
Number of flutes6
Overall length2.9550
Over under size reamerNo
Reamer diameter0.1576
Reamer diameter range0.1500 - 0.1999
Reamer diameter tolerance+0.012 to 0.000 mm
Shank diameter (mm)4.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
