Dormer Pramet

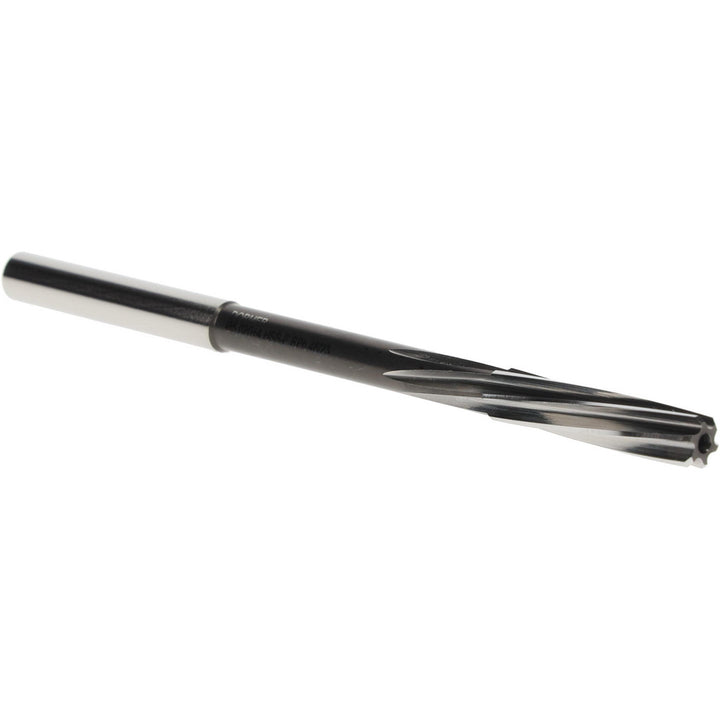

0.1978" Cobalt Steel Reamer - Dormer Pramet 5986915
MFR# 5986915Series B170
$64.56List $82.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Dormer Pramet 5986915 is a 0.1978 Cobalt Steel reamer.
Specifications
Additional informationCentesimal Reamer with Left Hand Slow Spiral Flutes & a Cylindrical Shank; Diameter 5.02mm with an Overall Length of 86mm; A Flute Length of 23mm & 52mm Reach with Neck Relief; According to DIN 212 Standard with a Diameter Tolerance of 0/+0.004Mm to Produ
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)23.00
Flute typeSpiral
Number of flutes6
Overall length3.3884
Over under size reamerNo
Reamer diameter0.1978
Reamer diameter range0.1500 - 0.1999
Reamer diameter tolerance0.000 to +0.004 mm
Shank diameter (mm)5.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialCobalt Steel
