Dormer Pramet
0.1182" Solid Carbide Reamer - Dormer Pramet 5987117
MFR# 5987117Series B400
$83.62List $107.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

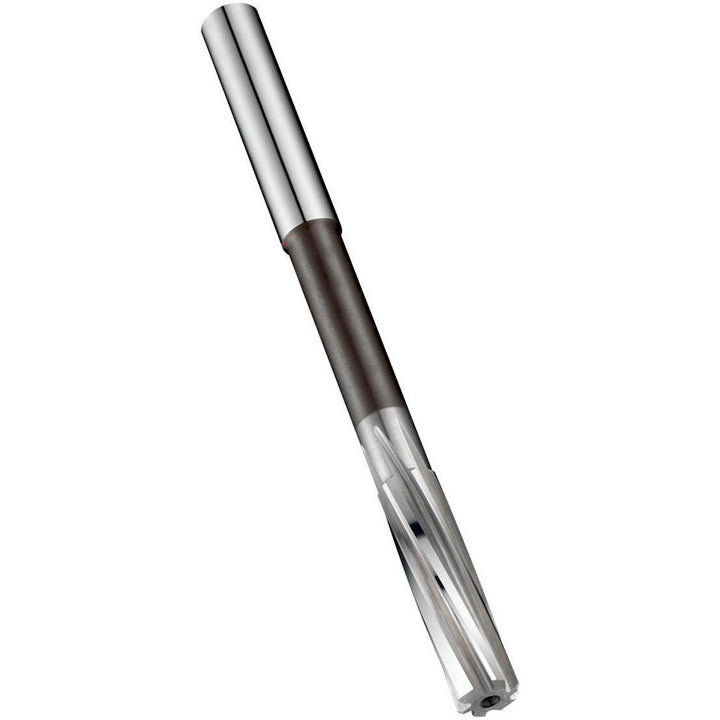

The Dormer Pramet 5987117 is a 0.1182 Solid Carbide reamer.
Specifications
Additional informationMachine Reamer with Left Hand Slow Spiral Flutes Which Are Extremely Unequally Spaced & a Cylindrical Shank; Diameter 3.00mm with an Overall Length of 61mm; A Flute Length of 15mm & 33mm Reach with Neck Relief; According to DIN 8093 Standard For Reaming P
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length (mm)15.00
Flute typeSpiral
Number of flutes6
Overall length2.4034
Over under size reamerNo
Reamer diameter0.1182
Reamer diameter range0.1000 - 0.1499
Reamer diameter tolerance+0.010 to 0.000 mm
Shank diameter (mm)3.00
Shank typeStraight-Cylindrical
Spiral directionLeft Hand
Tool materialSolid Carbide
