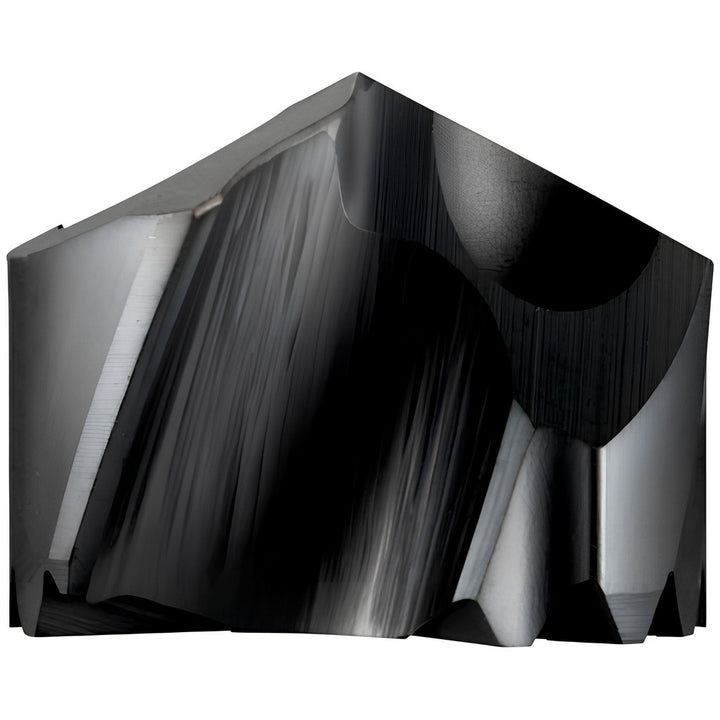

Carbide Insert, TiAlN - Dormer Pramet 5988629

MFR# 5988629Series R960

$116.18List $149.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Dormer Pramet 5988629 is a carbide indexable insert, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsHigh-performance replaceable drill head HYDRA M; diameter 20mm according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 20mm or 51/64"; H853 fo
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.7874
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3062
Height0.5555
Included angle degree140
Insert holding methodClamp
Iso numberR96020.0
Material gradeP1; P2; M1; M4; K1; K4; S1; S4
Number of flutes2
Overall length projection0.3062
Point typeFour Facet Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StandardsANSI
StyleR960
Tip materialSolid Carbide
