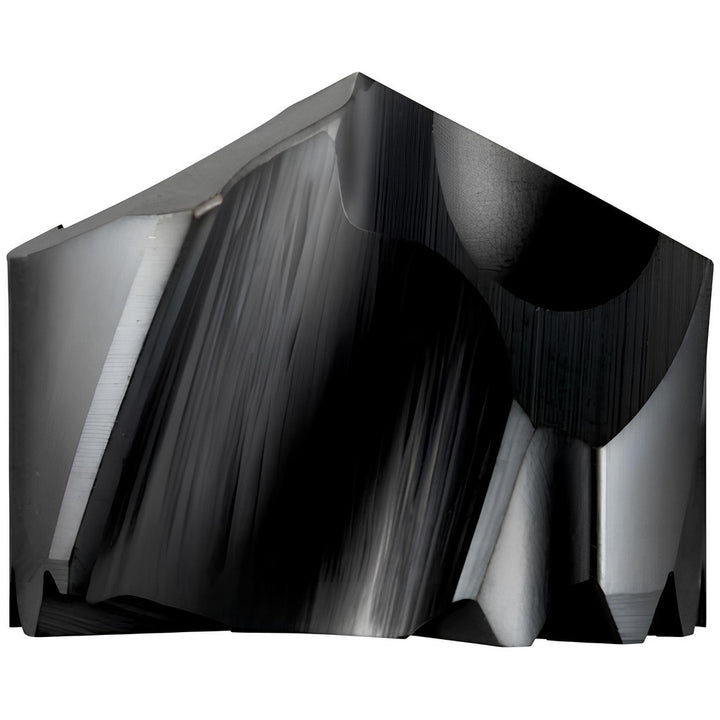

Carbide Insert, TiAlN - Dormer Pramet 5988787

Dormer Pramet

Carbide Insert, TiAlN - Dormer Pramet 5988787

MFR# Dormer Pramet-5988787Series R960

$97.30List $109.00 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Dormer Pramet 5988787 is a carbide indexable insert, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsHigh-performance replaceable drill head HYDRA M; diameter 16.5mm according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 16mm or 41/64"; H853
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.6299
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2513
Height0.457
Included angle degree140
Insert holding methodClamp
Iso numberR96016.5
Material gradeP1; P2; M1; M4; K1; K4; S1; S4
Number of flutes2
Overall length projection0.2513
Point typeFour Facet Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StandardsANSI
StyleR960
Tip materialSolid Carbide
