Carbide Insert, TiAlN - Dormer Pramet 5988893

Dormer Pramet

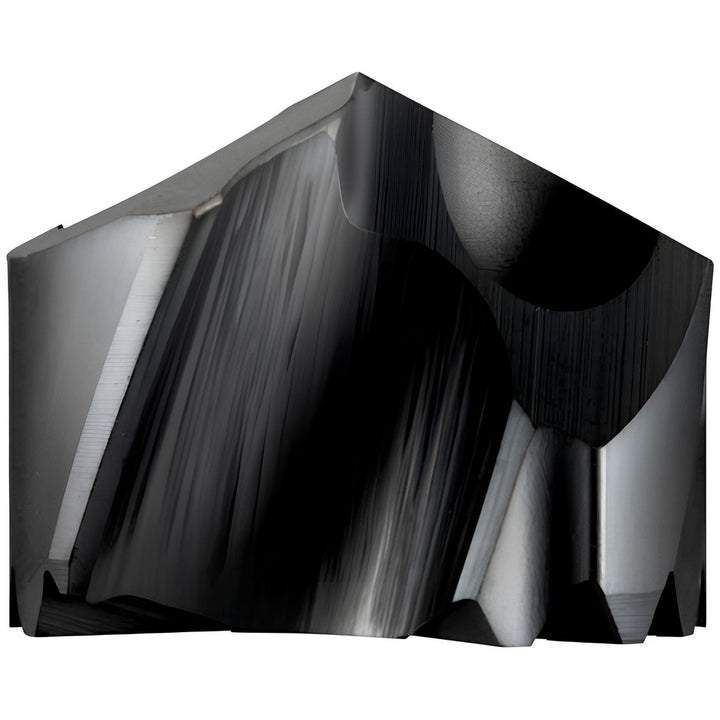

Carbide Insert, TiAlN - Dormer Pramet 5988893

MFR# 5988893Series R960

$119.29List $153.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Dormer Pramet 5988893 is a carbide indexable insert, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

ApplicationsHigh-performance replaceable drill head HYDRA M; diameter 0.8125" (13/16) according to DORMER standard with 140 modified 4-facet split point; solid carbide with Ti-phon coating for drilling stainless steel in combination with HYDRA body size 27/32" or 21
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in13/16
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3258
Height0.5831
Included angle degree140
Insert holding methodClamp
Iso numberR96013/16
Material gradeP1; P2; M1; M4; K1; K4; S1; S4
Number of flutes2
Overall length projection0.3258
Point typeFour Facet Point
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StandardsANSI
StyleR960
Tip materialSolid Carbide
