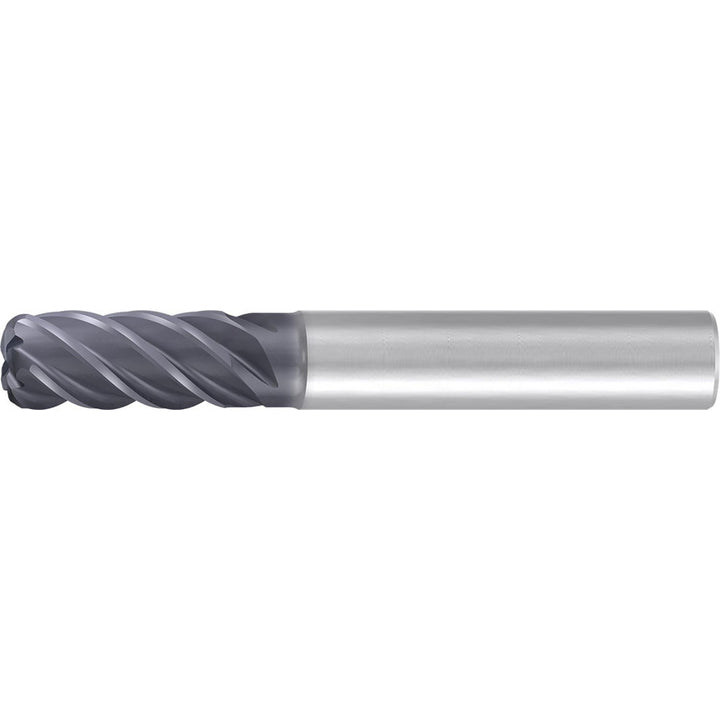

0.5000" 5-Flute Solid Carbide Corner Radius End Mill, AlCr - Emuge 3902L.A50030

Emuge

0.5000" 5-Flute Solid Carbide Corner Radius End Mill, AlCr - Emuge 3902L.A50030

MFR# 3902L.A50030

$133.72List $171.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlCr

Description

The Emuge 3902L.A50030 is a 0.5000 5-flute Solid Carbide corner radius end mill with a AlCr finish for longer tool life. 1-1/4 length of cut, 3-1/4 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlCr
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle35/38
Length of cut in1-1/4
Length typeStandard
Mill diameter0.5000
Mill diameter frac in1/2
Number of flutes5
Overall length in3-1/4
Shank diameter in1/2
Shank typeStraight
Single or double endSingle
